Product Description

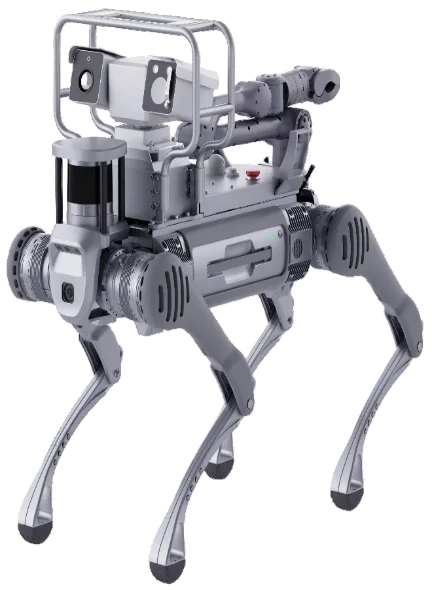

Unitree B2-XJ2-B Intelligent Inspection Robot System with Dual-Light PTZ Camera

The Unitree B2-XJ2-B is an advanced intelligent inspection robot solution built upon the Unitree B2 Industrial Quadruped Robot platform. Expanding upon the capabilities of the B2-XJ2-A, the B2-XJ2-B adds a professional-grade dual-light PTZ camera system that combines visible-light imaging, thermal imaging, intelligent monitoring, temperature measurement, and long-range inspection capabilities into a single autonomous robotic platform.

Designed for industrial facilities, electrical substations, utilities, oil & gas operations, manufacturing plants, critical infrastructure, and security applications, the B2-XJ2-B enables autonomous inspection, thermal analysis, anomaly detection, equipment monitoring, and remote situational awareness in complex environments.

By combining Unitree's powerful quadruped mobility with industrial-grade Laser SLAM navigation, autonomous patrol capabilities, robot management software, and a high-performance dual-light PTZ camera, the B2-XJ2-B provides a complete turnkey solution for next-generation robotic inspections.

Key Features

  • Includes all functions and capabilities of the Unitree B2-XJ2-A
  • Integrated Dual-Light PTZ Camera System
  • Thermal Imaging and Visible-Light Inspection
  • Autonomous Navigation and Patrol Operations
  • Industrial Laser SLAM Navigation System
  • Intelligent Temperature Monitoring and Analysis
  • Long-Range Visual Inspection Capabilities
  • Robot Management Platform Included
  • Contact Charging System Included
  • Network Communication Module Included
  • Emergency Stop System Included
  • Online Technical Support and Training Included

Included System Components

Base Robot Platform

  • Unitree B2 Industrial Quadruped Robot
  • Full B2-XJ2-A Inspection Robot Functionality
  • Industrial Laser SLAM Kit Assembly
  • Main Control Module
  • Power Supply Module
  • Contact Charger Assembly
  • Robot Network Module
  • Emergency Stop Button
  • Inspection Robot Management Platform (Station Software)

Dual-Light PTZ Camera System

  • Thermal Imaging Camera
  • Visible-Light Zoom Camera
  • Integrated Pickup Microphone
  • Integrated Speaker
  • Industrial Outdoor PTZ Platform

Thermal Imaging Specifications

Thermal Camera

  • English Version
  • SDK Included
  • Maximum Image Resolution:
    • 640 Ă— 512
    • 384 Ă— 288

Thermal Lens

  • Focal Length: 15 mm

Temperature Measurement

  • Measurement Range:
    • -20°C to 150°C
    • 0°C to 550°C

Measurement Accuracy

  • ±2°C
  • Or ±2% of Reading

Visible-Light Camera Specifications

Optical Zoom

  • Lens Range: 5 mm – 160 mm
  • 32Ă— Optical Zoom

Illumination

  • Supports 30-Meter White-Light Fill Light

PTZ Motion Performance

Horizontal Rotation

  • Continuous 360° Rotation

Rotation Speed

Ambient Temperature -20°C to 70°C

  • 0.5°/s to 90°/s

Ambient Temperature -40°C to -20°C

  • 0.5°/s to 20°/s

Vertical Rotation

  • -90° to +90°

Rotation Speed

Ambient Temperature -20°C to 70°C

  • 0.5°/s to 40°/s

Ambient Temperature -40°C to -20°C

  • 0.5°/s to 20°/s

Camera Physical Specifications

  • Dimensions: 321 Ă— 194 Ă— 153 mm
  • Weight: Less Than 5 kg

Environmental Specifications

Camera Operating Environment

  • Operating Temperature:
    • -40°C to 70°C
  • Humidity:
    • Less Than 90%

Protection Rating

  • IP67

Electrical Specifications

  • Power Supply:
    • DC 24V ±25%
  • Power Consumption:
    • 18W

Software & Development

Included

  • English Software Version
  • SDK Included
  • Robot Management Platform
  • Online Technical Support
  • Online Training Services

Not Included

  • On-Site Implementation Services
  • On-Site Installation Services
  • On-Site Training Services

Applications

  • Electrical Substation Inspection
  • Utility Infrastructure Monitoring
  • Oil & Gas Facility Inspection
  • Thermal Equipment Monitoring
  • Industrial Manufacturing Inspection
  • Security & Patrol Operations
  • Fire Prevention Monitoring
  • Predictive Maintenance Programs
  • Autonomous Facility Management
  • Critical Infrastructure Protection

Benefits

  • Autonomous inspection and monitoring platform
  • Simultaneous thermal and visible-light imaging
  • Precise temperature measurement capabilities
  • Long-range optical inspection with 32Ă— zoom
  • Real-time anomaly detection and monitoring
  • Industrial-grade IP67 protection
  • Complete robotic inspection ecosystem
  • Designed for harsh outdoor environments

The Unitree B2-XJ2-B Intelligent Inspection Robot System combines advanced robotic mobility, autonomous navigation, thermal imaging, and intelligent inspection capabilities into a powerful industrial solution. Designed for organizations seeking to automate inspection workflows and improve operational safety, the B2-XJ2-B delivers professional-grade performance for mission-critical monitoring and inspection applications.

Shipping & Availability

Please allow approximately 4–6 weeks for delivery following order confirmation.
