Product Description

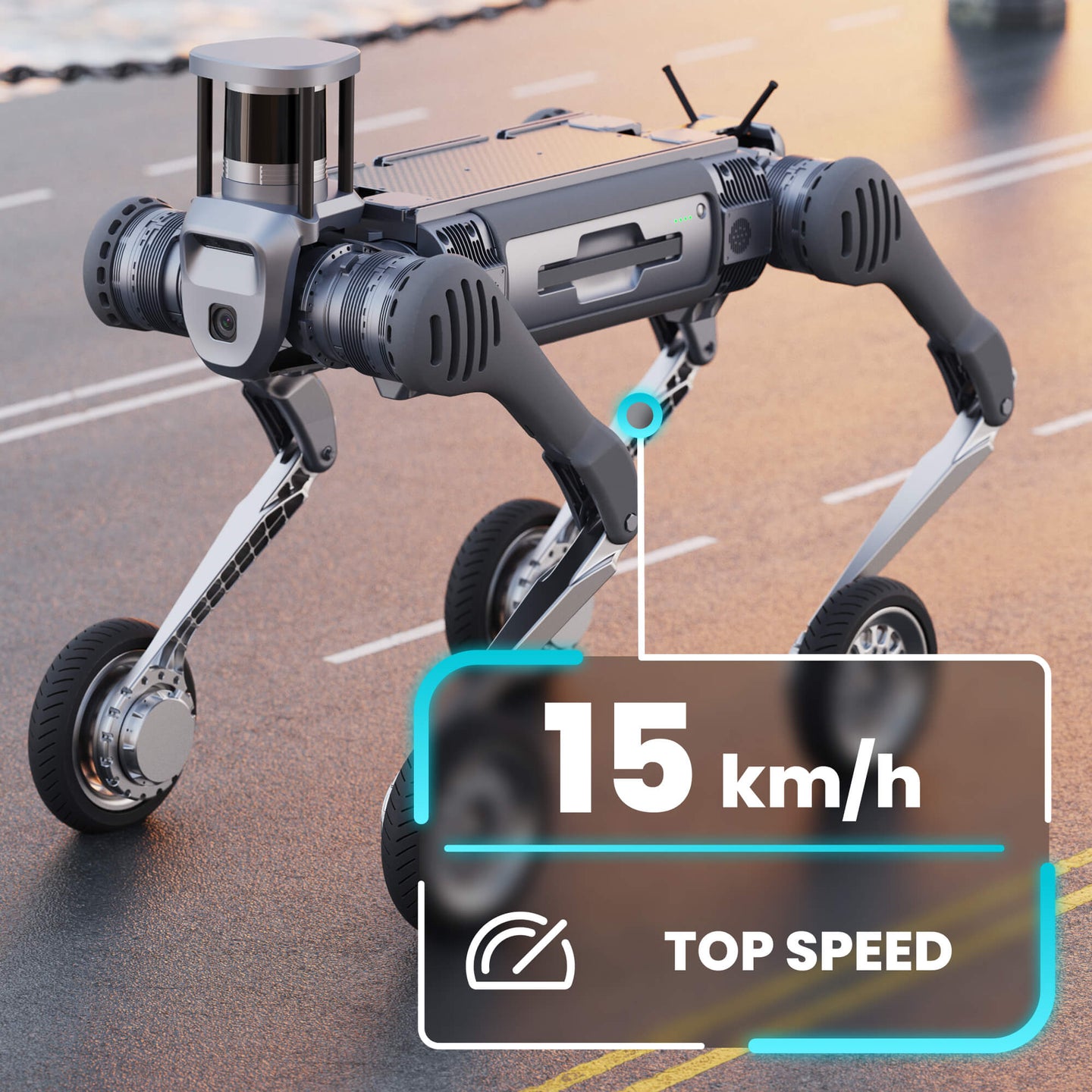

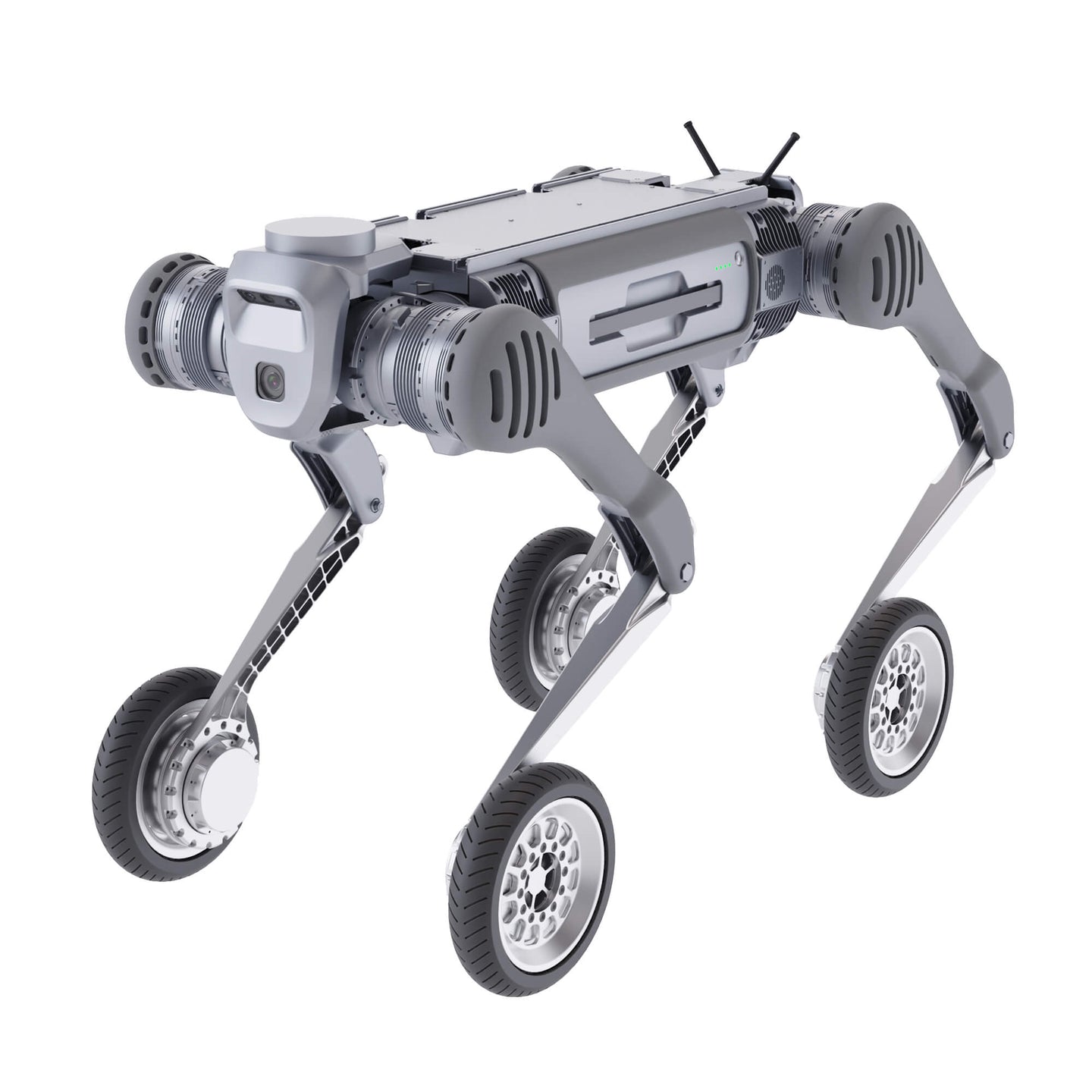

Unitree B2-W Industrial Quadruped Robotic Dog with Wheels

The Unitree B2-W is a next-generation industrial quadruped robot that combines the agility of a legged robot with the efficiency and speed of a wheeled platform. Designed for industrial inspection, security patrols, autonomous operations, research, emergency response, and advanced robotics development, the B2-W delivers exceptional mobility, payload capacity, and environmental adaptability.

Featuring Unitree's innovative wheel-leg architecture, the B2-W can seamlessly transition between wheeled and legged locomotion, allowing it to traverse complex terrain, climb stairs, overcome obstacles, and operate efficiently in demanding environments. Equipped with four high-reliability shock-absorbing tires, advanced perception systems, and powerful onboard computing options, the B2-W provides a versatile platform for both autonomous and remote-controlled operations.

Built for real-world deployment, the B2-W combines long-range endurance, high-speed mobility, and industrial-grade durability, making it an ideal solution for organizations seeking a highly capable robotic platform for challenging applications.

Key Features

  • Advanced wheel-leg hybrid robotic platform
  • Four high-reliability shock-absorbing wheels
  • Maximum speed up to 5 m/s (18 km/h)
  • Load capacity while moving of 40 kg or greater
  • Maximum standing load capacity up to 120 kg
  • Built-in depth cameras and HD cameras for advanced perception
  • Autonomous navigation and obstacle avoidance capabilities
  • Stair-climbing capability with step heights up to 16 cm
  • Operates in temperatures from -20°C to 55°C
  • Climbing angle capability exceeding 45°
  • Long-range operation with up to 50 km travel range under load
  • Industrial-grade IP67 protection rating
  • Suitable for inspection, security, research, mapping, and autonomous robotics applications

Technical Specifications

Hardware Platform

  • Weight (Including Battery): Approximately 75 kg
  • Dimensions (Standing): Approximately 1098 mm Ă— 450 mm Ă— 745 mm
  • Dimensions (Lying Prone): Approximately 950 mm Ă— 550 mm Ă— 450 mm
  • Mobility Configuration: Wheel-Leg Hybrid Quadruped
  • Number of Wheels: 4
  • Tire Type: High-Reliability Shock-Absorbing Tires
  • Load Capacity While Moving: ≥ 40 kg
  • Maximum Standing Load Capacity: Up to 120 kg
  • Maximum Speed: 5 m/s (18 km/h)

Mobility & Terrain Adaptability

  • Stair-Climbing Capability: Step Height Up to 16 cm
  • Maximum Climbing Angle: > 45°
  • All-Terrain Wheeled and Legged Operation
  • Advanced Dynamic Balancing and Stability Control

Battery & Endurance

  • Battery Capacity: Greater Than 2 kWh
  • Battery Voltage: 58V
  • Maximum Range: Up to 50 km with 40 kg Load
  • Designed for Extended Industrial Missions

Sensing & Perception

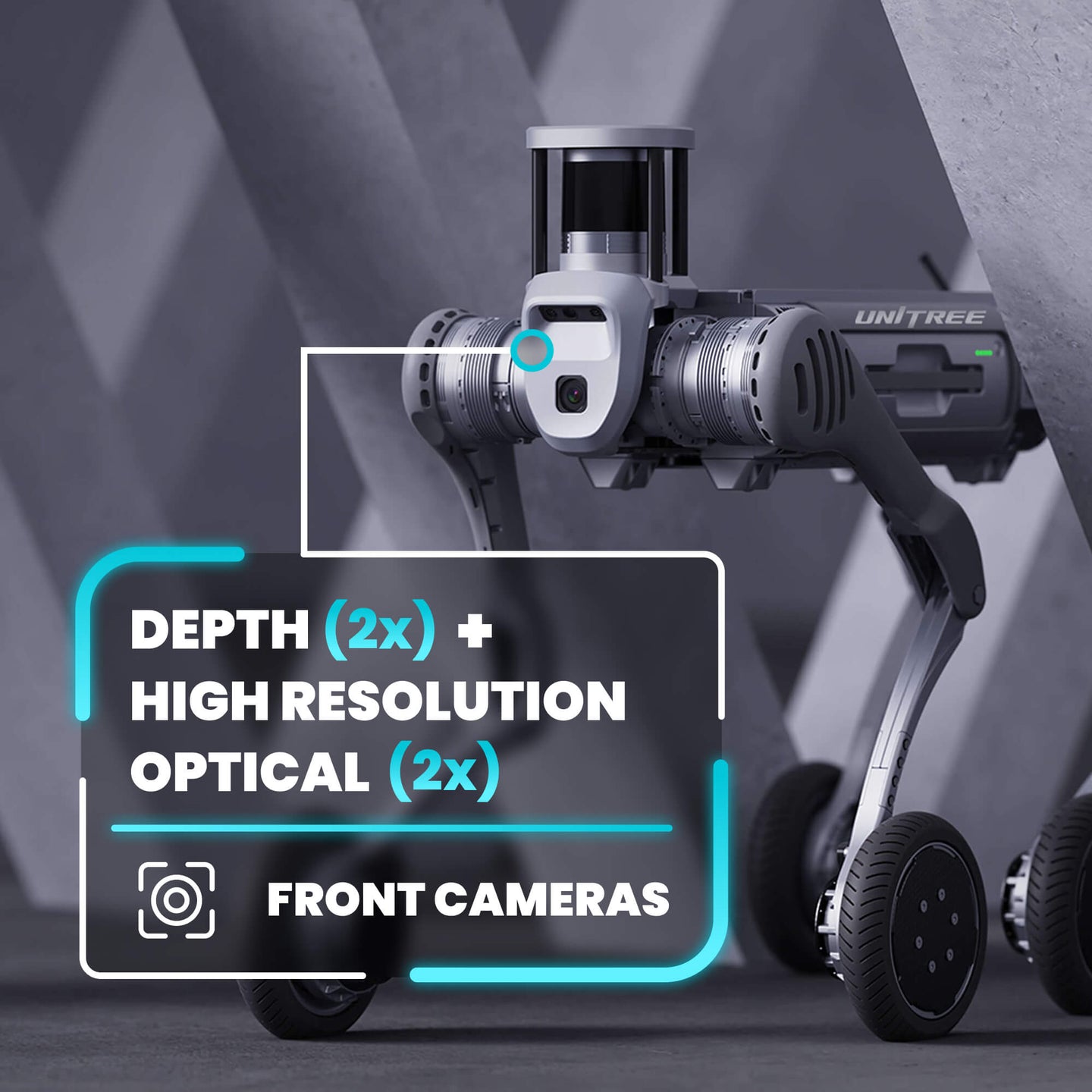

  • Built-In Multi-Group Depth Cameras
  • Built-In Multi-Group HD Cameras
  • Advanced Environmental Perception
  • Obstacle Detection and Avoidance
  • Autonomous Navigation Support
  • Optional 3D LiDAR Integration

Wheel System

  • Wheel Diameter: 225 mm
  • Maximum Wheel Speed: 57 rad/s
  • Maximum Wheel Torque: 50 N·m

Computing & Development

Standard Configuration

  • Intel® Coreâ„¢ i5 Processor (Platform Functionality)
  • Intel® Coreâ„¢ i7 Processor (User Development)

Optional Configuration

  • Intel® Coreâ„¢ i7
  • NVIDIA Jetson Orin NX
  • Supports Up to 3 Onboard Computing Devices

Environmental Specifications

  • Protection Rating: IP67
  • Operating Temperature: -20°C to 55°C (-4°F to 131°F)

Applications

  • Industrial Inspection
  • Security & Patrol Operations
  • Infrastructure Monitoring
  • Research & Development
  • Emergency Response
  • Autonomous Robotics Development
  • AI & Machine Vision Applications
  • Mapping & Surveying

The Unitree B2-W establishes a new standard in robotic mobility by combining the versatility of a quadruped robot with the efficiency of a wheeled platform. Whether deployed for industrial inspection, autonomous operations, security patrols, or advanced robotics research, the B2-W delivers the performance, durability, and intelligence required for demanding real-world environments.

Shipping & Availability

Please allow approximately 4–6 weeks for delivery following order confirmation.
