Product Description

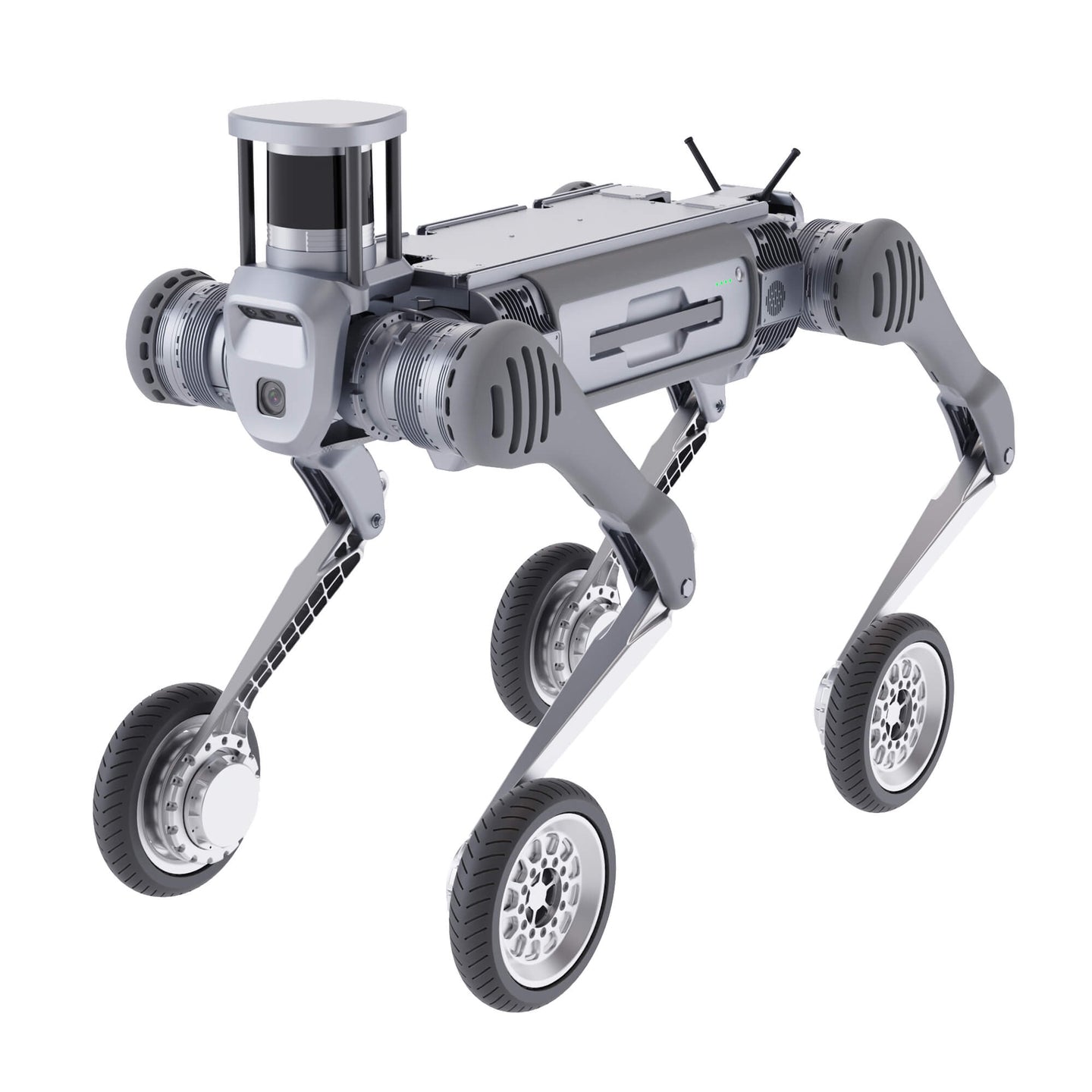

Unitree B2-W Industrial Quadruped Robotic Dog with LiDAR and Wheels

The Unitree B2-W Industrial Quadruped Robotic Dog with LiDAR and Wheels is a powerful all-terrain robotic platform that combines the agility of a quadruped robot with the speed and efficiency of wheeled mobility. Designed for industrial inspection, autonomous patrol, security operations, mapping, research, and advanced robotics development, the B2-W delivers exceptional performance across complex indoor and outdoor environments.

Equipped with four high-reliability shock-absorbing wheels, advanced sensing technologies, and a 32-line automotive-grade 3D LiDAR system, the B2-W provides enhanced environmental perception, navigation, and obstacle avoidance capabilities. Its wheel-leg architecture enables efficient travel over long distances while maintaining the ability to climb stairs, traverse rough terrain, and operate in challenging conditions.

Built for real-world deployment, the B2-W combines industrial-grade durability, advanced autonomous navigation capabilities, and powerful onboard computing, making it an ideal solution for organizations seeking a highly capable robotic platform for demanding applications.

Key Features

  • Advanced wheel-leg hybrid robotic platform
  • Integrated 32-line automotive-grade 3D LiDAR system
  • Navigation algorithms and SDK included
  • Four high-reliability shock-absorbing wheels
  • Mobile payload capacity of 40 kg or greater
  • Built-in depth cameras and HD cameras for advanced perception
  • Autonomous navigation and obstacle avoidance capabilities
  • Stair-climbing capability with step heights up to 16 cm
  • Default abdomen charging electrodes for autonomous charging integration
  • Long-range operation with up to 50 km travel range under load
  • Industrial-grade IP67 protection rating
  • Suitable for inspection, security, mapping, research, and autonomous robotics applications

Technical Specifications

Hardware Platform

  • Weight (Including Battery): Approximately 75 kg
  • Dimensions (Standing): Approximately 1098 mm Ă— 450 mm Ă— 745 mm
  • Dimensions (Lying Prone): Approximately 950 mm Ă— 550 mm Ă— 450 mm
  • Mobility Configuration: Wheel-Leg Hybrid Quadruped
  • Number of Wheels: 4
  • Tire Type: High-Reliability Shock-Absorbing Tires
  • Mobile Load Capacity: ≥ 40 kg
  • Maximum Standing Load Capacity: Up to 120 kg
  • Maximum Speed: Up to 5 m/s (18 km/h)
  • Default Abdomen Charging Electrodes Included

Mobility & Terrain Adaptability

  • Stair-Climbing Capability: Step Height Up to 16 cm
  • Maximum Climbing Angle: > 45°
  • All-Terrain Wheeled and Legged Operation
  • Advanced Dynamic Balancing and Stability Control

Battery & Endurance

  • Battery Capacity: Greater Than 2 kWh
  • Battery Voltage: 58V
  • Maximum Range: Up to 50 km with 40 kg Load
  • Designed for Extended Industrial Missions

Perception & Navigation System

  • Built-In Multi-Group Depth Cameras
  • Built-In Multi-Group High-Definition Cameras

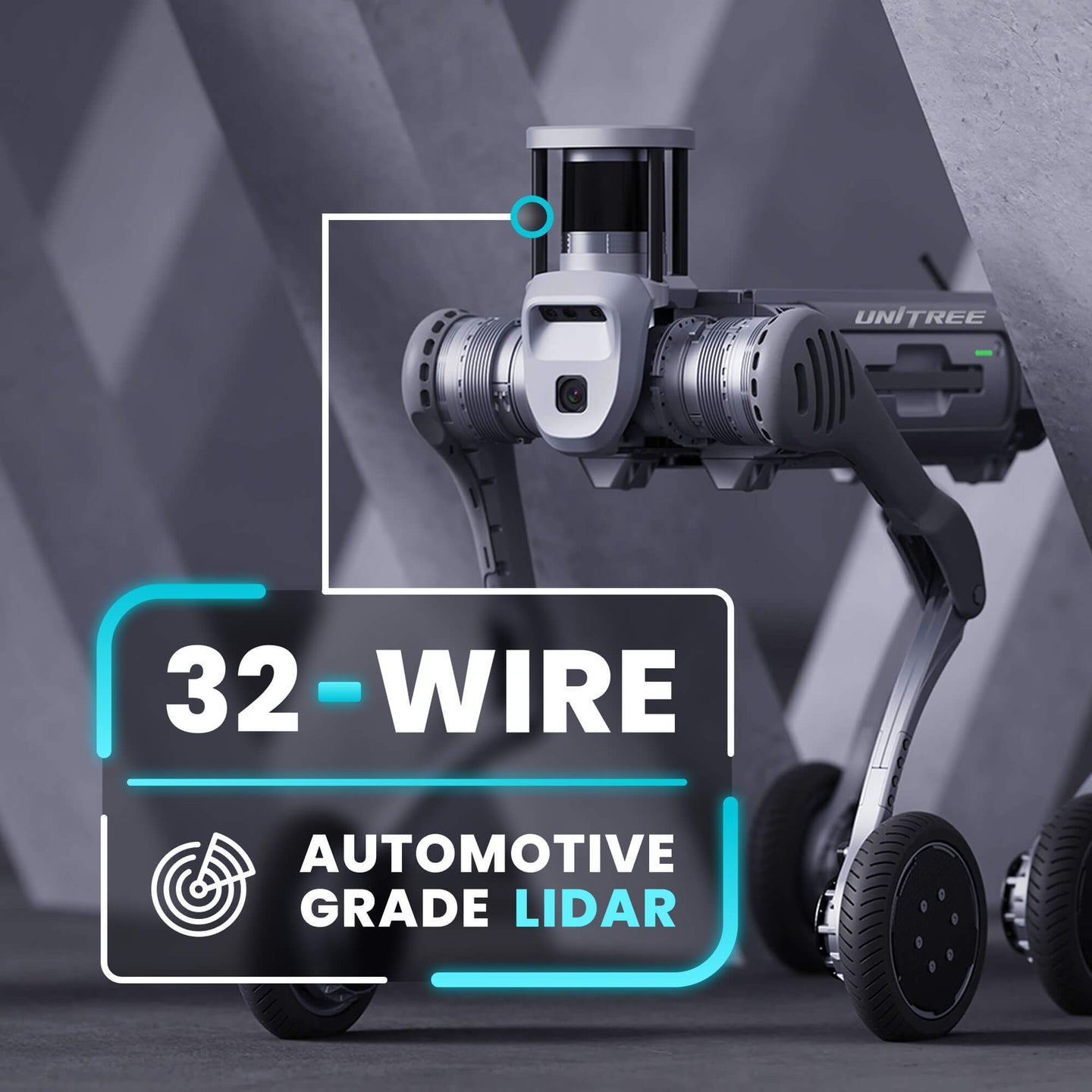

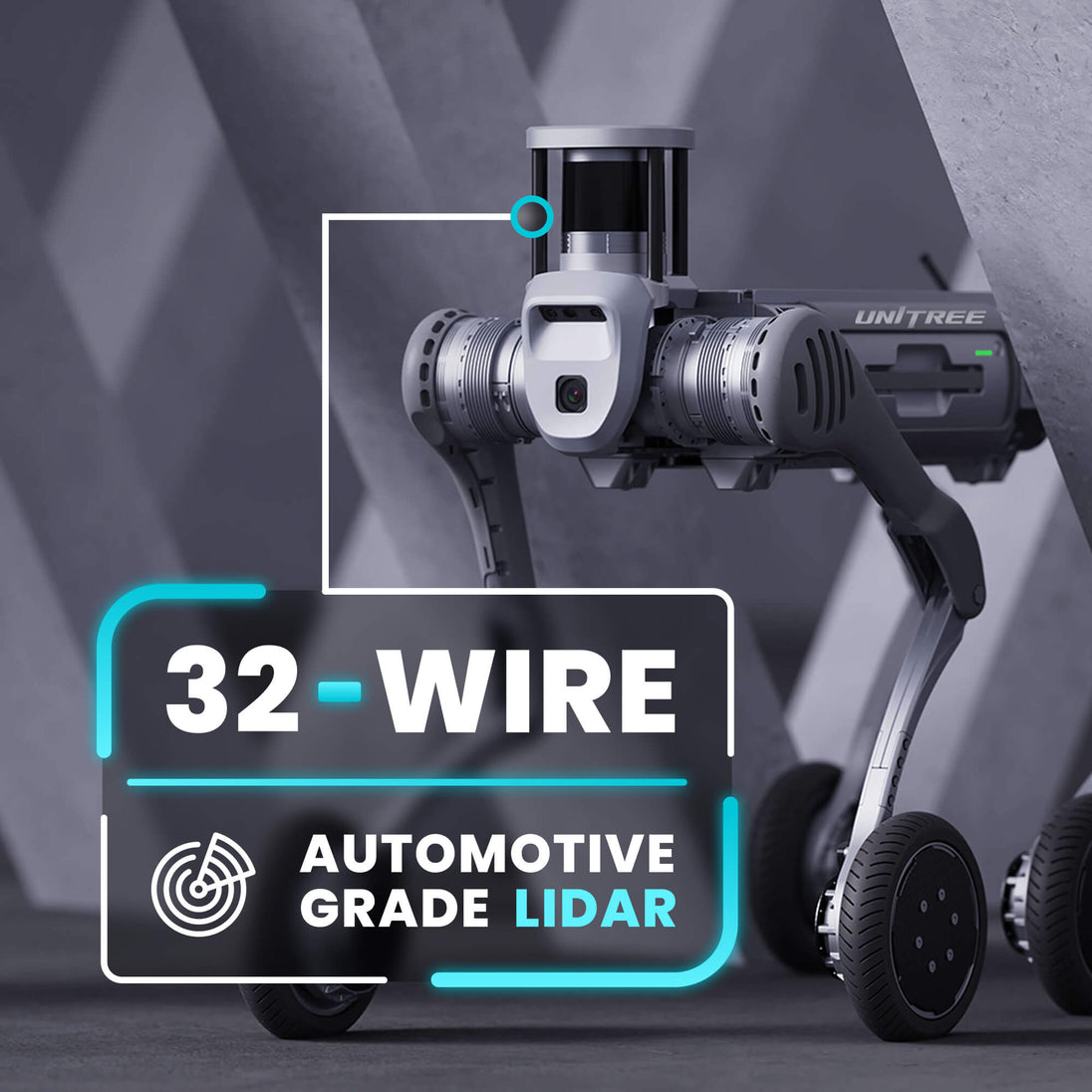

  • 32-Line Automotive-Grade 3D LiDAR
  • Navigation Algorithms Included
  • SDK Included for Development
  • Advanced Environmental Perception
  • Obstacle Detection and Avoidance
  • Autonomous Navigation Support
  • Real-Time Mapping and Localization Capabilities

Wheel System

  • Wheel Diameter: 225 mm
  • Maximum Wheel Speed: 57 rad/s
  • Maximum Wheel Torque: 50 N·m

Computing & Development

Standard Configuration

  • Intel® Coreâ„¢ i5 Processor (Platform Functionality)
  • Intel® Coreâ„¢ i7 Processor (User Development)

Optional Configuration

  • Intel® Coreâ„¢ i7
  • NVIDIA Jetson Orin NX
  • Supports Up to 3 Onboard Computing Devices

Environmental Specifications

  • Protection Rating: IP67
  • Operating Temperature: -20°C to 55°C (-4°F to 131°F)

Applications

  • Industrial Inspection
  • Security & Patrol Operations
  • Infrastructure Monitoring
  • Autonomous Navigation Research
  • Mapping & Surveying
  • Robotics Research & Development
  • AI & Machine Vision Applications
  • Emergency Response Operations

The Unitree B2-W Industrial Quadruped Robotic Dog with LiDAR and Wheels combines advanced mobility, autonomous navigation, and industrial-grade durability in a single platform. Featuring integrated automotive-grade 3D LiDAR, navigation algorithms, and a developer-friendly SDK, the B2-W is engineered to support next-generation robotics applications in the most demanding real-world environments.

Shipping & Availability

Please allow approximately 4–6 weeks for delivery following order confirmation.
