Product Description

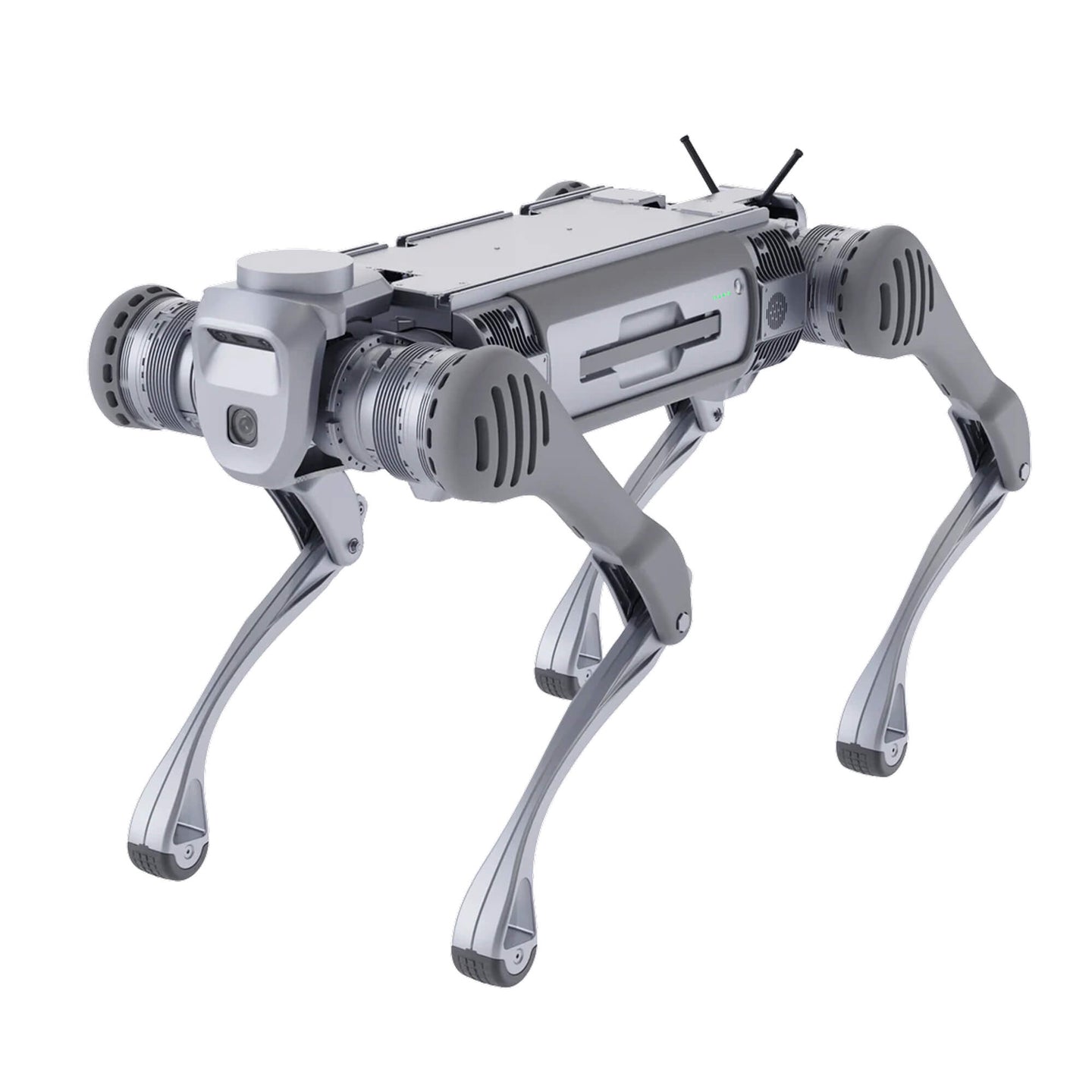

Unitree B2 Industrial Quadruped Robotic Dog

The Unitree B2 Industrial Quadruped Robotic Dog is a powerful, industrial-grade robotic platform engineered for inspection, security patrols, emergency response, infrastructure monitoring, research, and autonomous robotics development. Combining exceptional mobility, long-range endurance, high payload capacity, and advanced perception capabilities, the B2 is designed to operate reliably in challenging real-world environments.

Built around Unitree's advanced quadruped locomotion system, the B2 can traverse complex terrain, climb large staircases, overcome obstacles, and maintain stability while carrying substantial payloads. Its intelligent perception system combines multiple depth cameras and high-definition cameras with advanced terrain-aware locomotion algorithms, allowing the robot to dynamically adjust its gait and foot placement in real time for enhanced mobility and safety.

With over 5 hours of continuous operation, a payload capacity exceeding 40 kg while walking, and speeds of up to 5 m/s, the B2 delivers the performance required for demanding industrial and commercial applications.

Key Features

  • Industrial-grade quadruped robotic platform
  • Continuous walking payload capacity of 40 kg or greater
  • Maximum speed up to 5 m/s (18 km/h)
  • Advanced terrain-adaptive locomotion system
  • Real-time gait switching and intelligent foothold planning
  • Built-in multi-group depth cameras and HD cameras
  • Long-range endurance exceeding 20 km without load
  • High-capacity 45Ah battery system
  • Forward stair-climbing capability up to 40 cm
  • Autonomous inspection and patrol capabilities
  • Suitable for industrial, utility, security, emergency response, and research applications
  • IP67-rated industrial durability

Technical Specifications

Hardware Platform

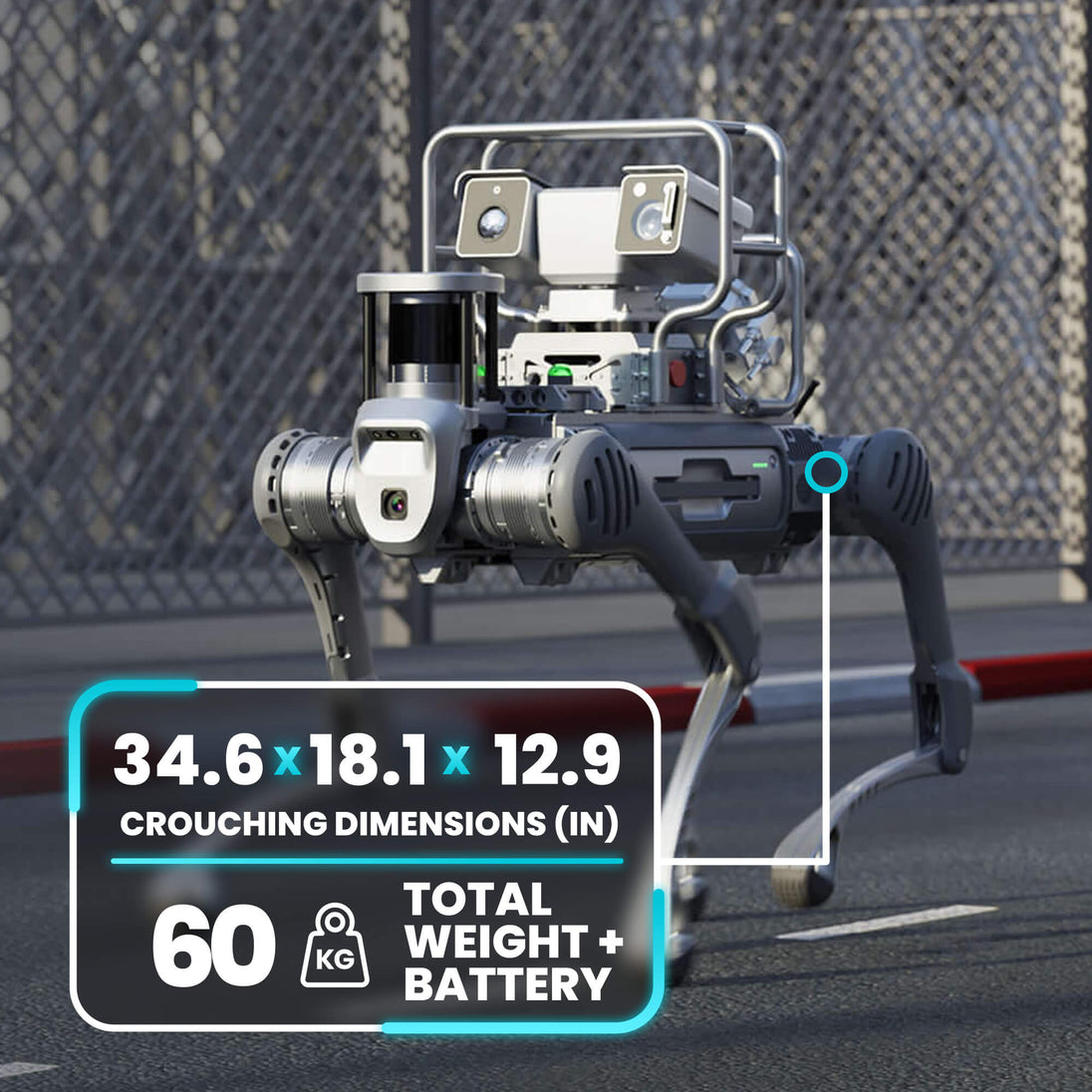

  • Weight (Including Battery): Approximately 60 kg
  • Dimensions (Standing): Approximately 1098 mm Ă— 450 mm Ă— 645 mm
  • Mobility Configuration: Industrial Quadruped Robot
  • Continuous Walking Load Capacity: ≥ 40 kg

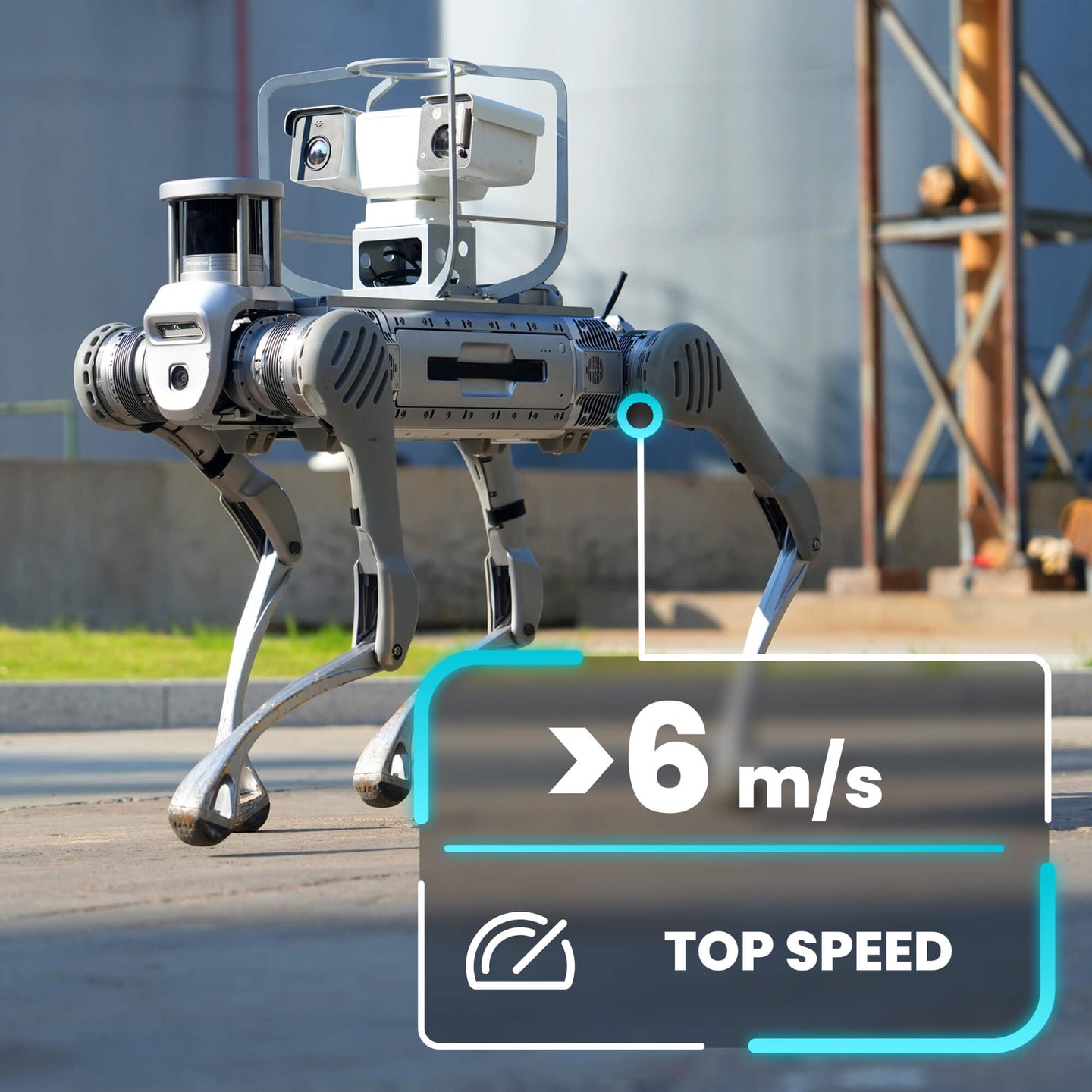

  • Maximum Speed: 5 m/s (18 km/h)

Mobility & Terrain Adaptability

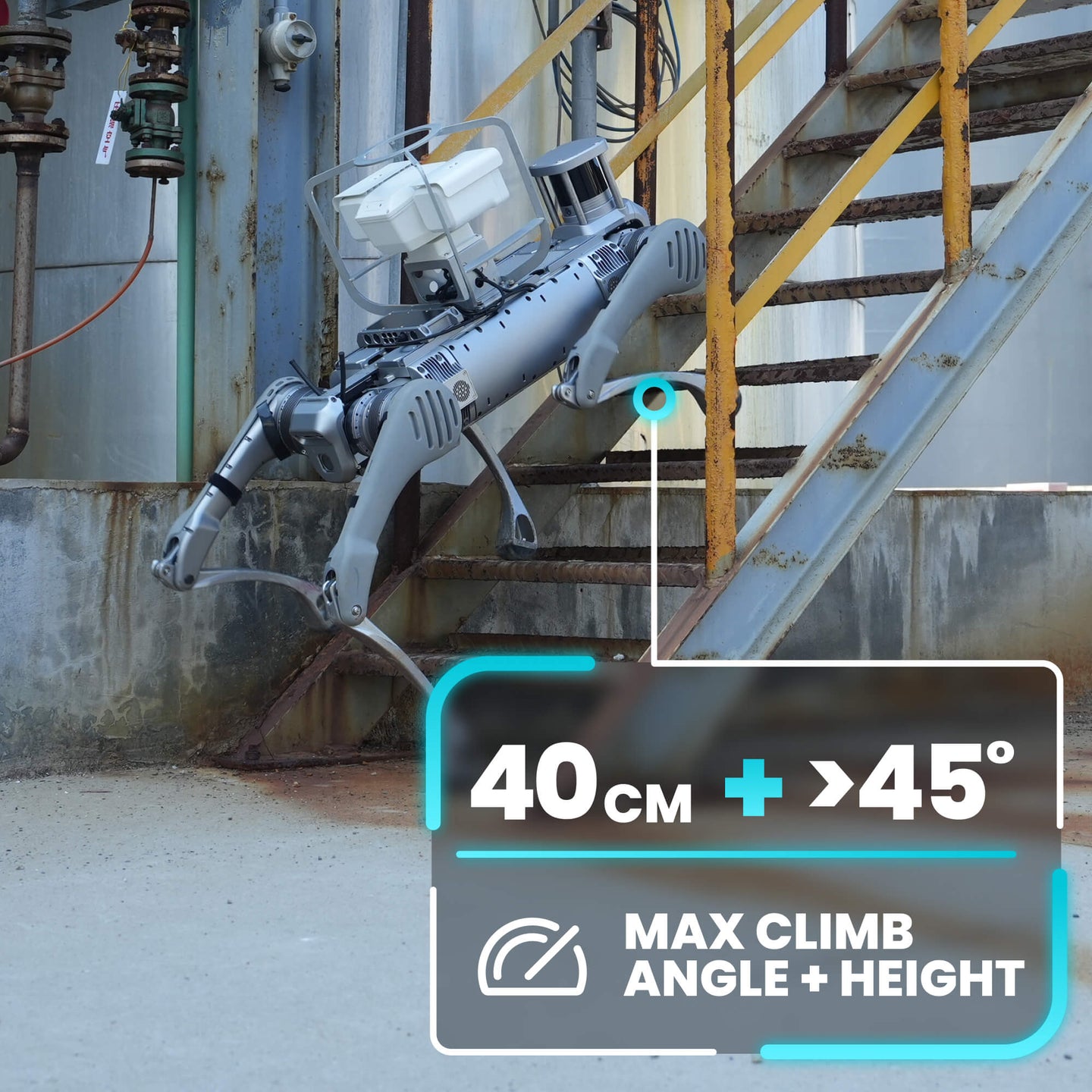

  • Forward Stair-Climbing Capability: Up to 40 cm Stair Height
  • Intelligent Terrain Adaptation
  • Real-Time Gait Switching
  • Dynamic Landing Point Planning
  • Advanced Balance and Stability Control
  • Designed for Complex Indoor and Outdoor Terrain

Endurance & Battery System

No Load Operation

  • Continuous Walking Range: More Than 20 km

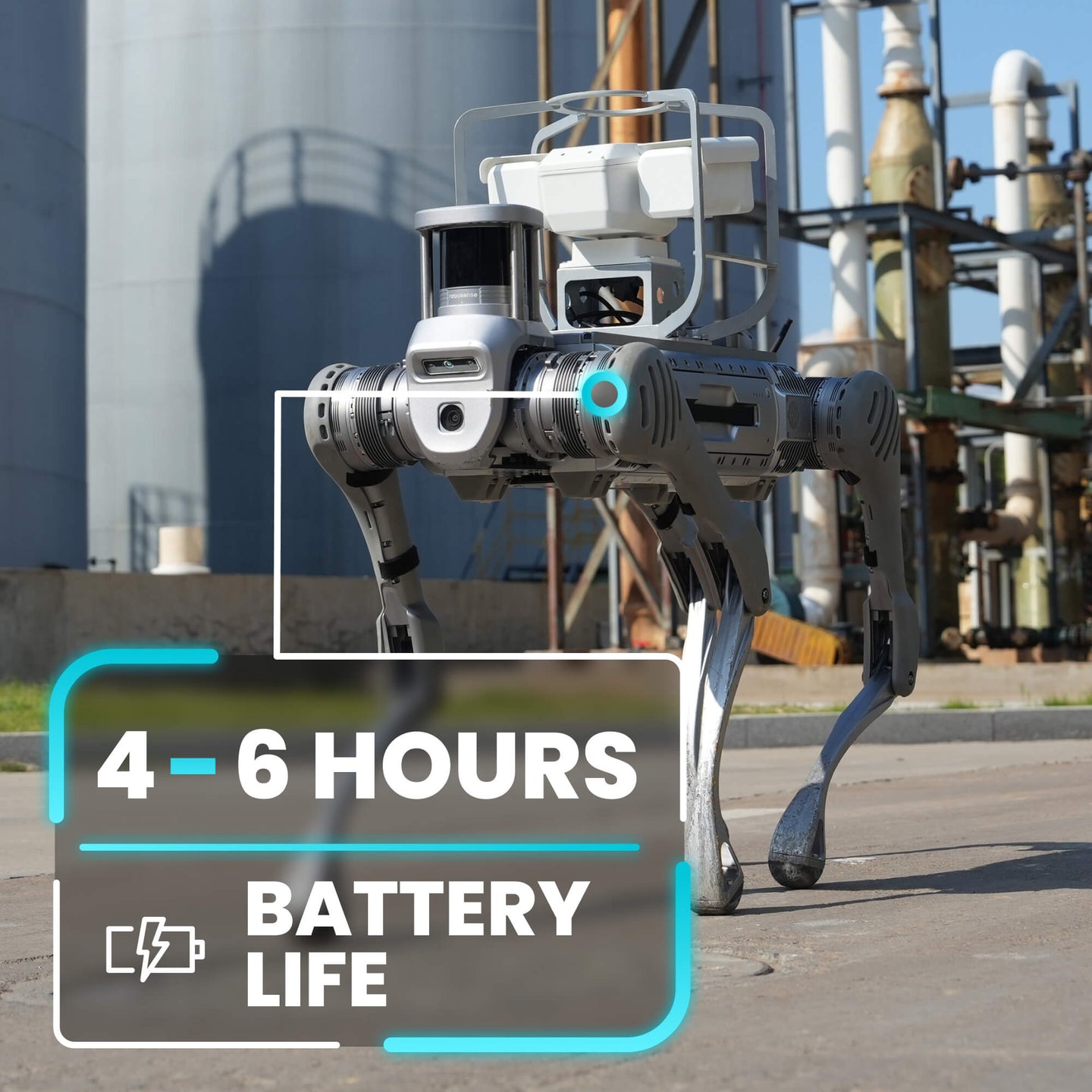

  • Continuous Operating Time: More Than 5 Hours

With 20 kg Payload

  • Continuous Walking Range: More Than 15 km
  • Continuous Operating Time: More Than 4 Hours

Battery Specifications

  • Battery Capacity: 45 Ah
  • Rated Energy: 2250 Wh
  • Maximum Charging Current: 15 A

Sensing & Perception

  • Built-In Multi-Group Depth Cameras
  • Built-In Multi-Group High-Definition Cameras
  • Intelligent Terrain Perception
  • Real-Time Gait and Landing Point Adjustment
  • Advanced Environmental Awareness
  • Autonomous Navigation Support
  • Obstacle Detection and Avoidance

Computing & Development

Standard Configuration

  • Intel® Coreâ„¢ i5 Processor (Platform Functionality)
  • Intel® Coreâ„¢ i7 Processor (User Development)

Optional Configuration

  • Intel® Coreâ„¢ i7
  • NVIDIA Jetson Orin NX
  • Supports Up To 3 Onboard Computing Devices

Environmental Specifications

  • Protection Rating: IP67
  • Operating Temperature: -20°C to 55°C (-4°F to 131°F)

Applications

  • Industrial Inspection
  • Utility & Power Infrastructure Monitoring
  • Security Patrol Operations
  • Emergency Response
  • Search & Rescue Support
  • Research & Development
  • Autonomous Robotics Development
  • AI & Machine Vision Applications

The Unitree B2 Industrial Quadruped Robotic Dog is engineered to tackle demanding environments where traditional robots cannot operate effectively. With exceptional endurance, intelligent terrain adaptation, industrial-grade durability, and advanced perception capabilities, the B2 provides a reliable robotic solution for organizations seeking next-generation mobility and autonomy.

Shipping & Availability

Please allow approximately 4–6 weeks for delivery following order confirmation.
