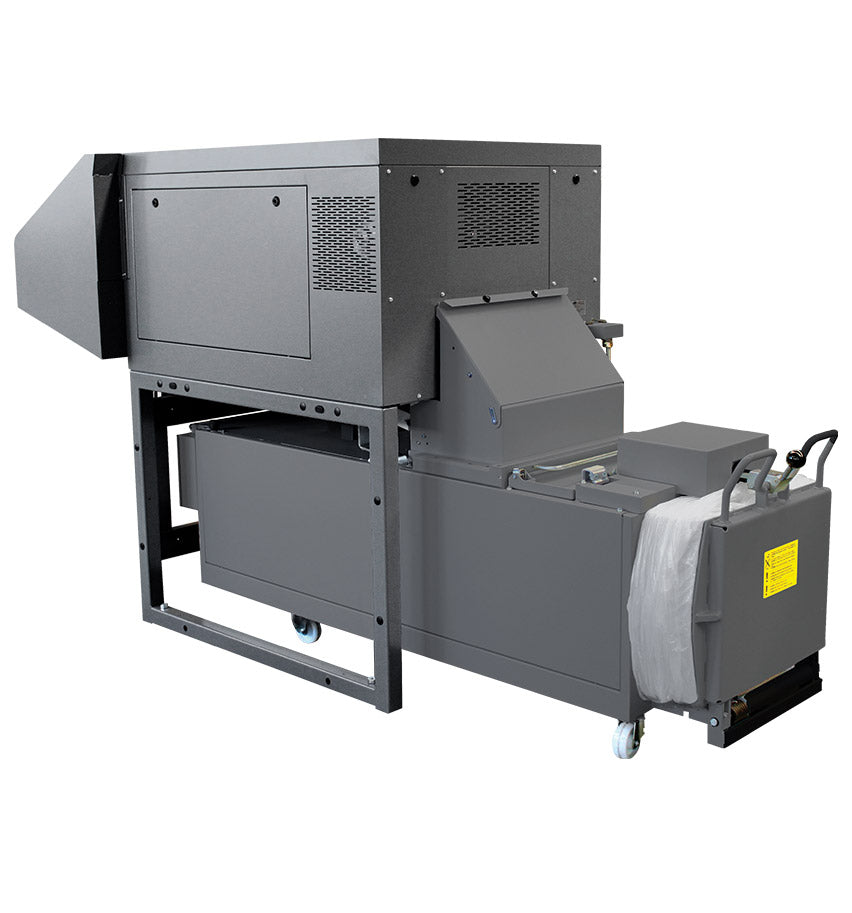

Intimus 16.86 SmartShred with 870 baling press, rear view

Intimus

Intimus 16.86 SmartShred Shredder / Baler Combination with 870 Baler

SKU 656144/475904

Regular price: $59,480.00

Regular price: $59,480.00

Product variants

Quantity

Estimated shipping time

Free shipping within the contiguous United States. Ships by freight carrier directly from Intimus North America (Wabash, Indiana); we contact you to arrange delivery. Intimus has not published a fixed lead time for this model; we confirm the estimated ship date by email after your order is placed. Contact us before ordering for delivery outside the contiguous U.S.

What is your Return Policy?

At Pioneering Power, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@PioneeringPower.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

Product Description

The Intimus 16.86 SmartShred pairs the high-volume 16.50 SmartShred industrial shredder with the Intimus 870 press baler for immediate, automatic compaction of shredded waste into compact bales. It handles extreme volumes of sensitive documents and media, routinely reducing waste volume by up to 70%, and SmartShred PLC touchscreen controls provide status information, service reminders and detailed error messages.

Key Features

Up to 520 sheets per pass (10 x 70 mm) or 330 sheets per pass (6 x 50 mm)
Up to 1,250 lb per hour (10 x 70 mm) or 1,050 lb per hour (6 x 50 mm)
9-ton press force produces 130-175 lb bales; pushbutton bale ejection with double strapping
Shredder loading can continue while the baler compresses material
Separate cardboard feed opening; bypass feed places bulky items directly into the compactor

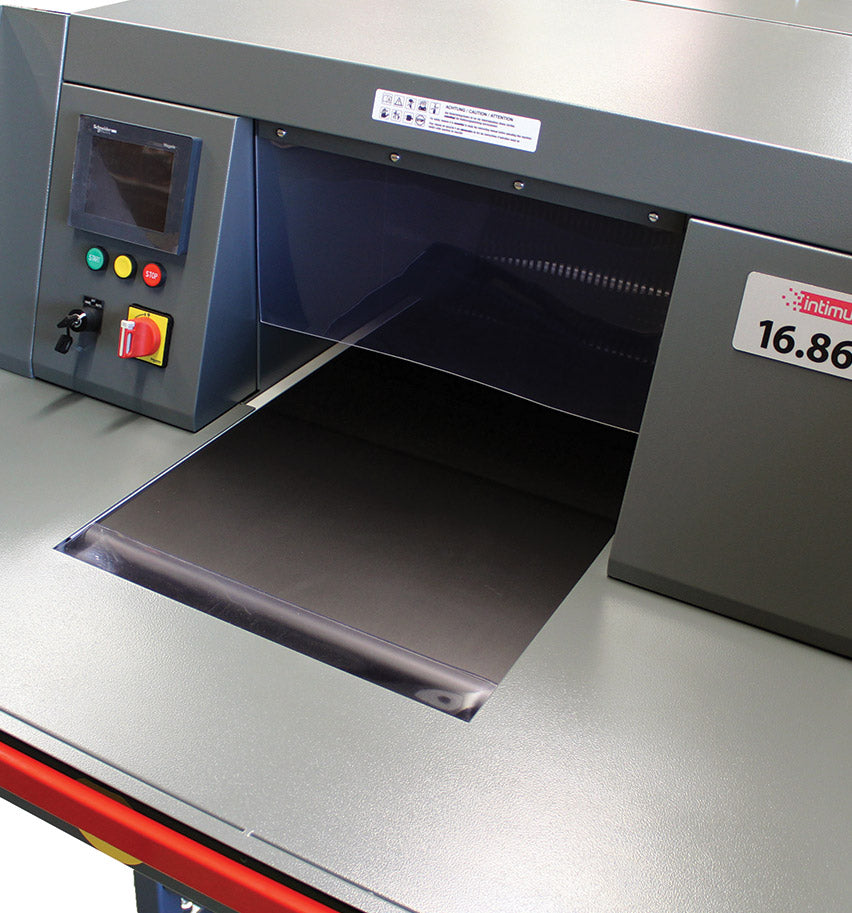

SmartShred PLC touchscreen controls and integrated automatic oiling system
Shreds flat sheets, crumpled paper, complete folders, paper clips, CDs, credit cards/ID badges and floppy disks

Choose Your Cut Size

10 x 70 mm, DIN 66399 P-2 / O-2 / T-2 / E-2: Intimus items 656144 + 475904.
6 x 50 mm, DIN 66399 P-3 / O-3 / T-3 / E-2: Intimus items 656124 + 475904.

Technical Specifications

Model	Intimus 16.86 SmartShred with Intimus 870 baler

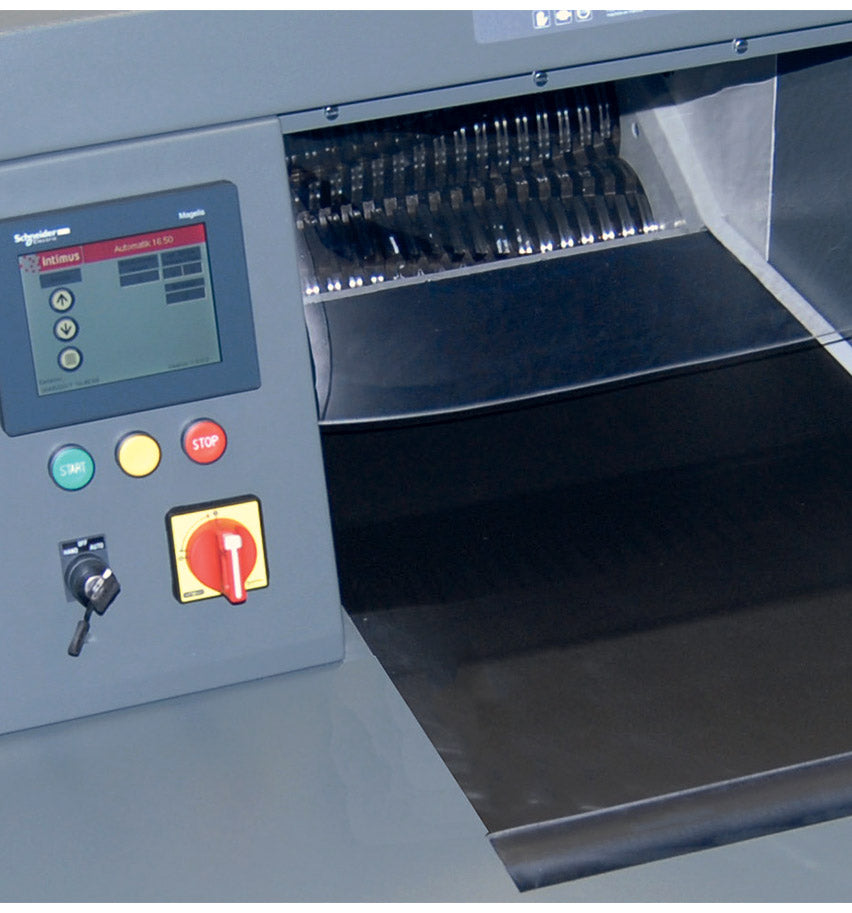

Feed opening	19.7 in
Cutting speed	9.5 in/sec
Bale weight	130-175 lb
Press force	9 tons
Sound level	61 dBA
Motors	10 hp shredder, 5.25 hp baler
Power	220 V / 60 Hz / 3-phase
Nominal dimensions (W x D x H)	135 x 48 x 61 in
Machine weight	2,769 lb (shredder and baler)
Shipping weight	3,104 lb

Capacity varies with paper weight. Certain small-format items such as SSDs may pass through the cutting head undestroyed. A 220 V three-phase supply is required.

What's Included

Intimus 16.86 SmartShred shredder with the selected cutting head and the Intimus 870 baler (220-230 V / 3-phase / 60 Hz). Baler strap and bale bags are consumables sold separately; the optional bagging system and dust collector are not included.

Warranty

Intimus North America shredder/baler combination warranty: 1 year parts, 90 days labor, and 3 years on the cutting cylinders, from the date of shipment. Labor coverage is available only in the continental United States. Normal wear items and electrical components are excluded unless found defective. Proof of purchase is required.

Support

Pioneering Power is an authorized Intimus reseller. For installation, service or warranty needs, contact Pioneering Power first; we coordinate directly with Intimus. Installation and annual service agreements are available at extra cost on request.

Shipping

Free shipping within the contiguous United States. This item ships by freight carrier directly from Intimus North America in Wabash, Indiana; after your order is placed we contact you to confirm delivery details (loading dock or liftgate, inside delivery, doorway widths) and the estimated ship date. Contact us before ordering for delivery outside the contiguous U.S.
