Product Description

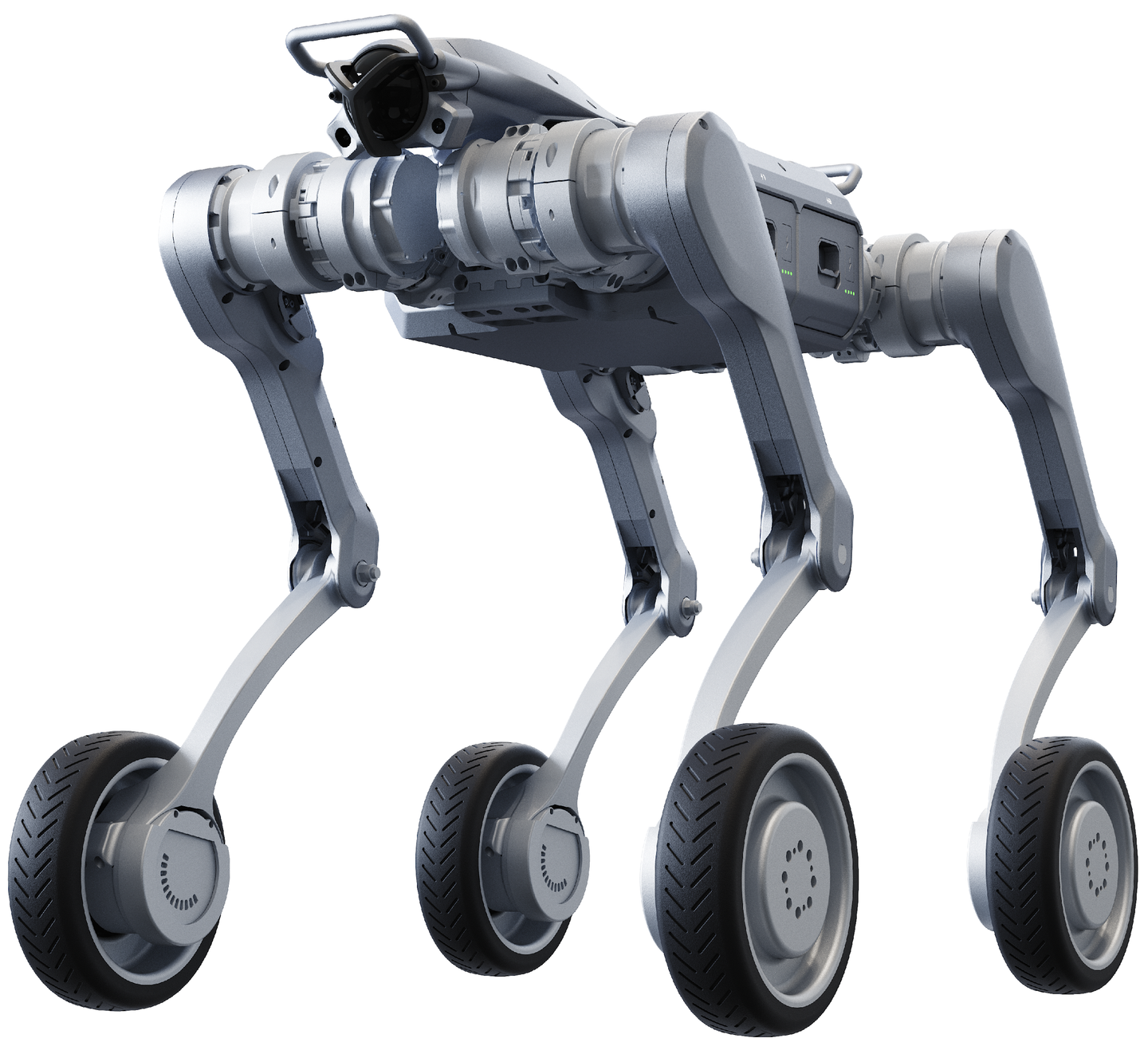

Stokes Robotics AERO A2-W Standard

The Stokes Robotics AERO A2-W Standard is a next-generation wheel-leg robotic platform engineered for advanced research, autonomous inspection, security, education, and robotics development applications. Combining the agility of a quadruped robot with the efficiency of wheeled mobility, the A2-W delivers exceptional terrain adaptability, long-range operation, and powerful onboard computing for real-world deployments.

Designed for developers, universities, government agencies, and commercial robotics teams, the AERO A2-W features a sophisticated wheel-leg configuration capable of traversing complex environments, climbing stairs, overcoming obstacles, and operating across challenging terrain. Powered by dual onboard computing systems—including an 8-core high-performance CPU and an Intel® Core™ i7 processor—the platform provides substantial computing resources for AI development, autonomous navigation, machine vision, and advanced robotics research.

Supporting both high-level and low-level secondary development, the A2-W includes robot models, simulation interfaces, and compatibility with Isaac Sim, making it an ideal platform for robotics innovation, testing, and deployment.

Key Features

  • Hybrid wheel-leg robotic platform for superior mobility and terrain adaptability
  • Payload capacity of approximately 20–25 kg
  • Dual-computing architecture featuring an 8-core high-performance CPU and Intel® Core™ i7 processor
  • Stable obstacle avoidance and point cloud surround-view capabilities
  • High-definition image transmission and autonomous navigation functionality
  • Autonomous charging support (optional)
  • Integrated LiDAR and wide-angle camera sensing system
  • Supports advanced AI, autonomy, perception, and robotics development
  • Compatible with Isaac Sim and other simulation environments
  • Intelligent OTA (Over-the-Air) upgrade capability
  • WiFi 6 and Bluetooth 5.2 connectivity
  • Integrated speaker, microphone, and lighting system
  • Comprehensive developer ecosystem and expert-level technical support
  • One-year warranty on the complete unit

Technical Specifications

Mobility & Performance

  • Configuration: Wheel-leg robotic platform
  • Approximate Payload Capacity: 20–25 kg
  • Maximum Slope Angle: 45°
  • Continuous Stair-Climbing Capability: ≥ 28 cm stair height
  • Maximum Single-Step Climbing Height: ≥ 90 cm
  • Drive System: Low-inertia high-speed internal rotor permanent magnet synchronous motors
  • Joint Feedback: Dual encoder system

Operating Range

Without Payload

  • Continuous Operating Time: Approximately 4–5 hours
  • Maximum Range: Approximately 20 km

With 25 kg Payload

  • Continuous Operating Time: Approximately 2.5–3 hours
  • Maximum Range: Approximately 12.5 km

Battery & Power System

  • Power Supply: Dual-bay dual-battery system
  • Single Battery Capacity: 9,000 mAh (453.6 Wh)
  • Dual Battery Capacity: 18,000 mAh (907.2 Wh)
  • Single Battery Charging Time: Approximately 1 hour

Computing Platform

  • Platform Processor: 8-core high-performance CPU
  • User Development Processor: Intel® Core™ i7
  • Total Onboard Computing Systems: 2

Sensors & Perception

  • LiDAR: 1
  • Wide-Angle Camera: 1 (expandable to 2)
  • Stable Obstacle Avoidance
  • Point Cloud Surround View
  • High-Definition Image Transmission

Connectivity

  • WiFi 6
  • Bluetooth 5.2

Standard Equipment

  • Speaker
  • Microphone
  • Lighting Lamp

External Interfaces

  • RS485 ×2
  • CAN ×2
  • Gigabit Ethernet ×2
  • USB 3.0 Type-C (8-core CPU) ×2
  • USB 3.0 Type-C (Intel® Core™ i7) ×2

Power Outputs

  • 12V
  • 24V
  • BAT

Development Support

  • High-level secondary development support
  • Low-level secondary development support
  • Robot models and simulation interfaces provided
  • Compatible with Isaac Sim simulation environment
  • Intelligent OTA (Over-the-Air) upgrades
  • Expert-level technical support services
  • Comprehensive development manuals
  • Ecosystem support

Environmental Specifications

  • Operating Temperature: -20°C to 55°C (-4°F to 131°F)

Warranty

  • One-Year Manufacturer Warranty on the Entire Unit

The Stokes Robotics AERO A2-W Standard delivers the mobility, computing power, sensing capabilities, and development flexibility required for next-generation robotics applications. Whether deployed for autonomous inspection, AI research, security operations, advanced education, or commercial robotics development, the A2-W provides a powerful and adaptable platform built for real-world performance.

⚠️ Shipping & Availability: Expected to ship July 2026. Orders placed now will be fulfilled at launch. Please allow an additional 4–6 weeks after the July 2026 release date for delivery.

Pioneering Power is an authorized Stokes Robotics reseller.
