Product Description

Consumer-grade CNC power for every workshop

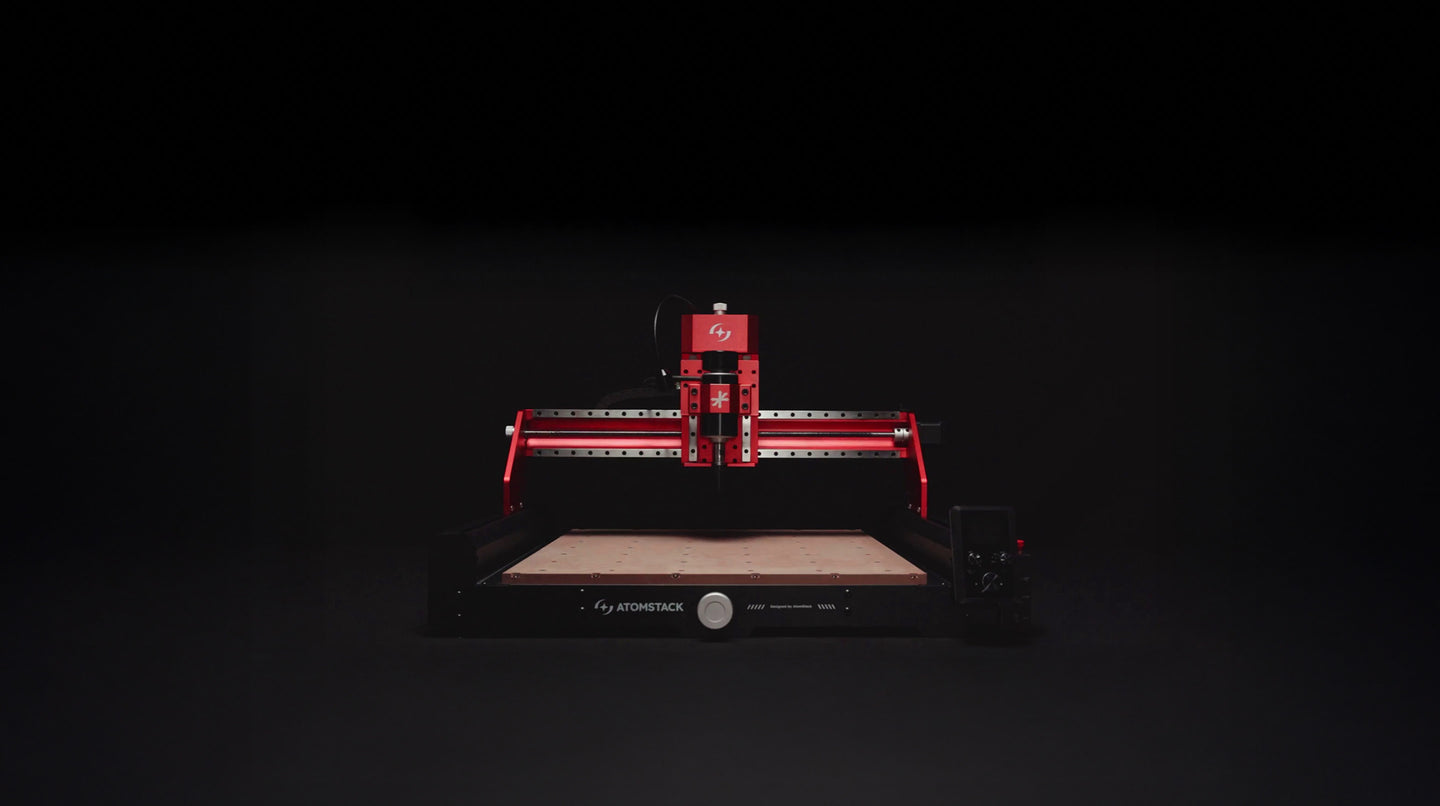

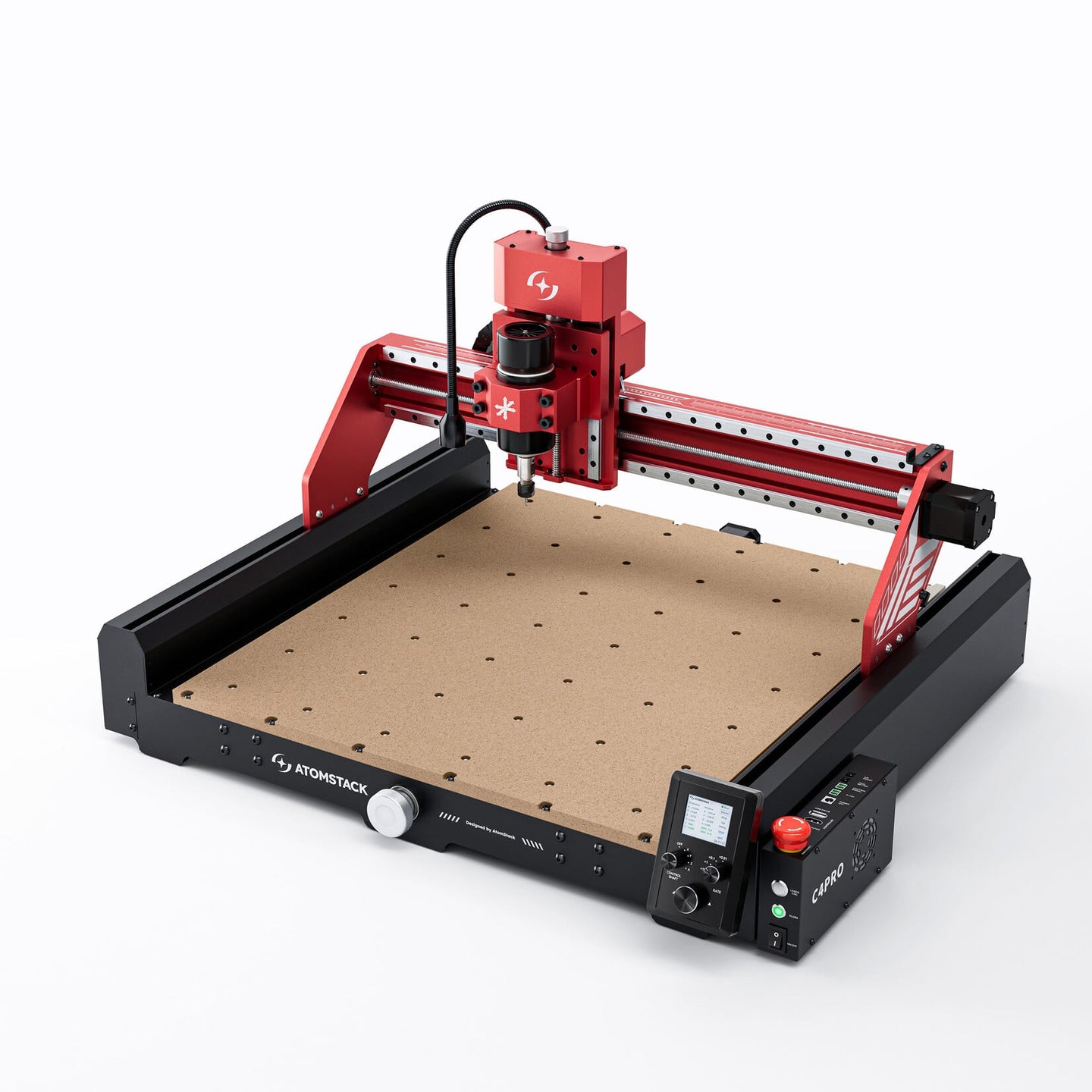

The AtomStack C4 Pro is a high-precision desktop CNC router built for intricate carving, high-precision milling, and rapid cutting across a wide range of materials. Industrial-grade linear rails and a double-nut screw drive system deliver 0.01 mm repeatability, so every part comes out exactly as designed.

  • 200W high-torque spindle: runs up to 12,000 rpm for speed, strength, and reliability in prototyping and production
  • Unmatched precision: ±0.1 mm positioning accuracy and 0.01 mm repeatability
  • 16.5 x 16.5 in work area: clearance for pieces up to 3.5 in high, for large-scale prototypes and batch output
  • Manual precision control: three hand wheels give fine, real-time X/Y/Z adjustment without a computer
  • 4-point centering system: instantly locates the exact center of a workpiece, eliminating measurement guesswork
  • Ready to run in 15 minutes: quick, simple setup process
  • Wide material compatibility: wood, soft aluminum, MDF, paper, leather, cardboard, cork, fabric, and soft metals

Technical specifications

Dimensions 24.8 x 16.6 in (63.1 x 42.3 cm)
Working area 16.5 x 16.5 in (42 x 42 cm)
Max workpiece height 3.5 in (9 cm)
Spindle power 200W
Spindle speed Up to ~12,000 rpm
Max speed ~2,000 mm/min
Positioning accuracy ±0.1 mm
Repeatability 0.01 mm
Motion structures Linear guides (MGH12, etc.), double-nut screws T8/T12
Supported software Candle, UGS (Universal G-Code Sender), ioSender (not compatible with AtomStack Studio)

Warranty & support

Covered by a 1-year limited manufacturer warranty against defects in materials and workmanship under normal use (hardware only; accessories and consumables excluded). Warranty is non-transferable to end users and requires proof of purchase.

Shipping

In stock, ships in 1-2 business days.
